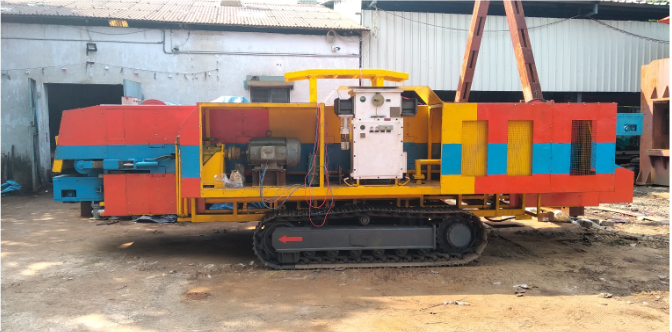

Description: Engineered for performance, the Mobile Extendable Haulage System (MEHS) is a game-changer in underground coal transport. Its modular and extendable frame adapts easily to varying mine layouts, offering flexibility unmatched by traditional fixed conveyors. Designed to minimize downtime, it integrates seamlessly with continuous miners, improving coal clearance and reducing the need for equipment repositioning. With a rugged hydraulic crawler and high torque efficiency, MEHS delivers unmatched reliability in the harshest underground conditions—at a lower lifetime cost than imported alternatives.

Specifications: - Retracted Length: 6500mm (±2%) - Extended Length: 15500mm (±1%) - Width: 2500mm (±5%) - Height:     - Machine: 1743mm (±5%)     - Canopy: 2350mm (±5%) - Discharge Height: 448mm to 1030mm - Belt Speed (@142 T/Hr): 42 m/min - Belt Width: 800mm - Hydraulic Working Pressure: 140 Bar (system), 160 Bar (crawler) - Hydraulic Fluid: HFD 68 viscosity - Crawler Speed: 0.6 – 0.7 km/hr - Gradability: 33° - Ground Pressure: 0.54 kg/cm² (7.7 psi)

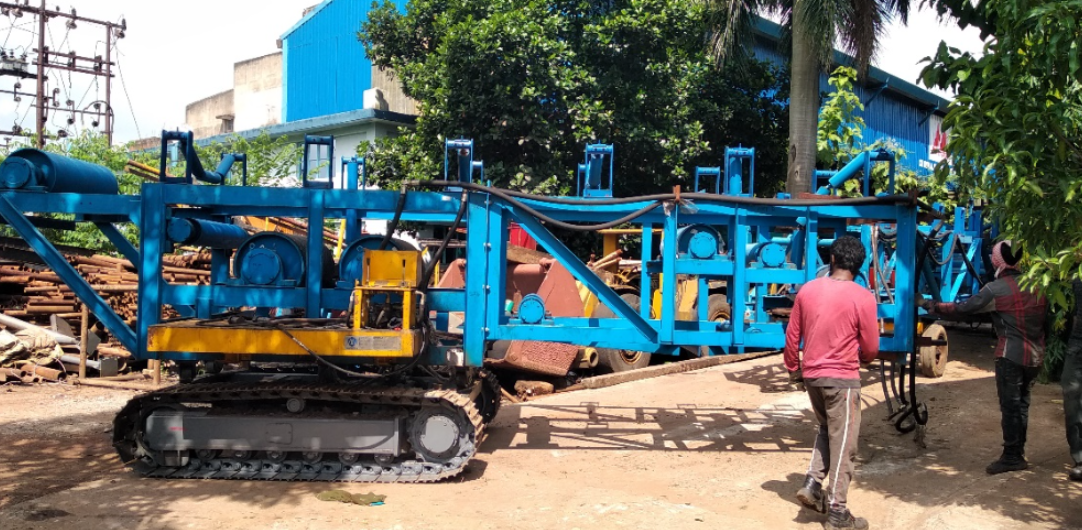

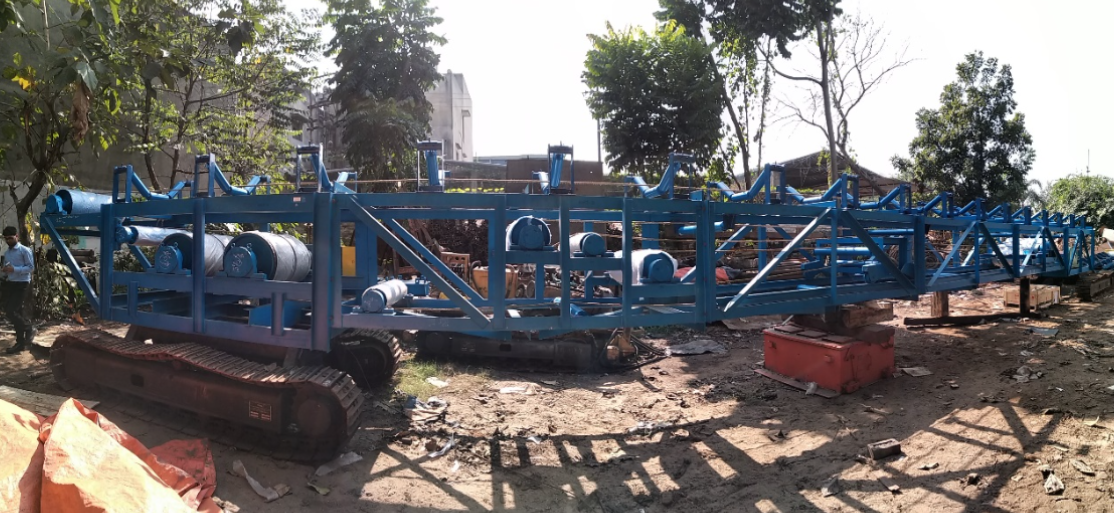

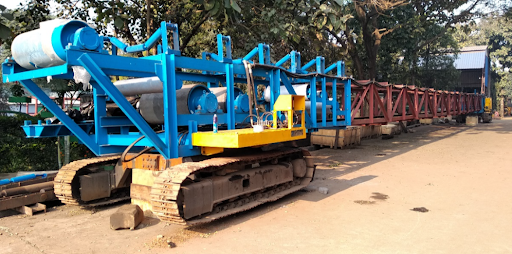

Description: The Advanmind Travelling Conveyor is built to optimize material flow in highwall mining without sacrificing space or speed. With mobile, rugged construction and hydraulic drive systems, it allows for extended reach and stable transport of coal across longer distances. Whether 20m or 40m, these conveyors minimize delays between cuts, improve production cycles, and ensure smooth load transfer—making them ideal for operations that demand both high capacity and flexibility. Unlike static units, these systems reduce repositioning costs and deliver high uptime in rugged surface conditions.

Specifications (40m Variant): - Range: 60 meters - Belt Width: 900 mm - Width: 2840 mm (Drive End), 2100 mm (Power Pack) - Height: 2245 mm - Belt Speed: 1.6 m/sec - Hydraulic Pressure: 160 bar - Hydraulic Fluid: HFD-68 - Crawler Speed: 0.9 – 1.0 km/hr - Gradability: 33°

Specifications (20m Variant): - Range: 20 meters - Belt Width: 900 mm - Width: 2840 mm (Drive End), 2100 mm (Power Pack) - Height: 2245 mm - Belt Speed: 1.6 m/sec - Hydraulic Pressure: 160 bar - Hydraulic Fluid: HFD-68 - Crawler Speed: 0.9 – 1.0 km/hr - Gradability: 33°
